New Products

WORKSHOP HYDRAULIC PRESS FOR BEARINGS 50T - two-speed

Article code:

14349

NOTE: HEAVY ITEM (possible change in shipping costs - in this case, we will notify you by phone)

Price with VAT:

790,00 €

ADD TO CART

CLOSING HANDLE RIGHT SIDE

Article code:

14348

Price with VAT:

30,00 €

ADD TO CART

DIMENSIONS – TECHNICAL DATA SHEET

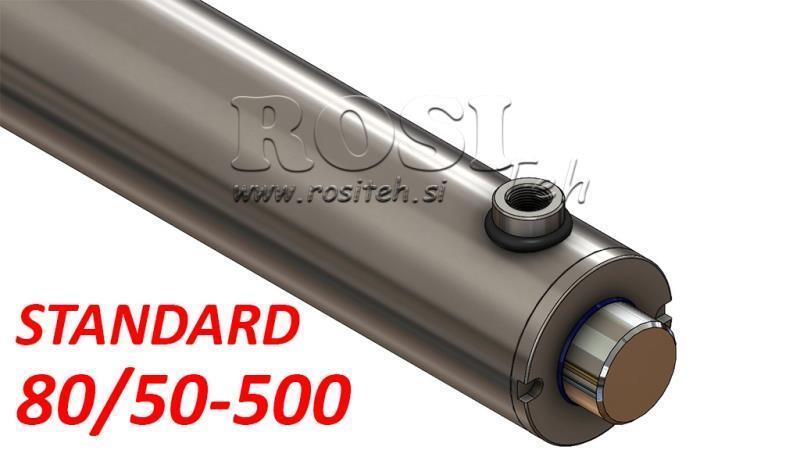

HYDRAULIC CYLINDER STANDARD 80/50-500

Article code:

10463

OEM:

9990000003891

Tax rate

22 %

Price without VAT:

155,74 €

Price with VAT:

190,00 €

Ref:

Price list of delivery

ADD TO CART

DIMENSIONS

STANDARD	E	D (stroke)
STANDARD	[mm]
80/50-100	280	100
80/50-150	330	150
80/50-200	380	200
80/50-250	430	250
80/50-300	480	300
80/50-350	530	350
80/50-400	580	400
80/50-450	630	450
80/50-500	680	500
80/50-550	730	550
80/50-600	780	600
80/50-700	880	700
80/50-800	980	800
80/50-900	1080	900
80/50-1000	1180	1000

HYDRAULIC CYLINDERS

Hydraulic cylinders convert hydraulic energy into linear force and consequently motion. They operate based on Pascal's law and utilize the force generated by the pressure of the enclosed fluid - oil. When hydraulic fluid is pumped to one side of the cylinder, it pushes the piston, creating linear motion in the desired direction.

A typical double-acting hydraulic cylinder ('differential cylinder') has two connections (for hydraulic hoses), allowing linear movement in both directions.

Due to the different ratio of the area of the pressed oil on one side or the other of the cylinder, the cylinder also has different power when extending or retracting. Consequently, due to the different volume of oil on one or the other side of the cylinder, the speed of the cylinder (piston) is also different (faster or slower). During 'extension' of the cylinder, oil acts on the entire surface of the piston, causing the cylinder to exert greater force and move more slowly; conversely, during 'retraction', where the area is smaller by the diameter of the rod, the cylinder overcomes less force, allowing it to move faster.

Applications of hydraulic cylinders:

Hydraulic cylinders are useful wherever there is a need for greater power. In agriculture, hydraulic cylinders are used for tractors (lifting arms of three-point linkages, top links, hydraulic steering, loaders, FRONT HYDRAULICSs, etc.), combines, loaders, etc. They are equally widely used on various tractor attachments, such as rakes, loaders, tipper trailers, wood splitters, hatches on slurry tanks, harrows, moving mowers and mulchers, silage collectors, turning plows for soil, snow plows, forestry winches, etc.

Hydraulic cylinders are also very commonly used in forestry, machine construction, construction, shipbuilding, energy, food industry, and automotive industry.
