    PRIORITY VALVE RFP3 1/2 open tank
    Instructions for PRIORITY VALVE RFP3 1/2 open tank
    Wiring PRIORITY VALVE RFP3 1/2 open tank
    PRIORITY VALVE RFP3 1/2 open tank
    Instructions for PRIORITY VALVE RFP3 1/2 open tank
    Wiring PRIORITY VALVE RFP3 1/2 open tank

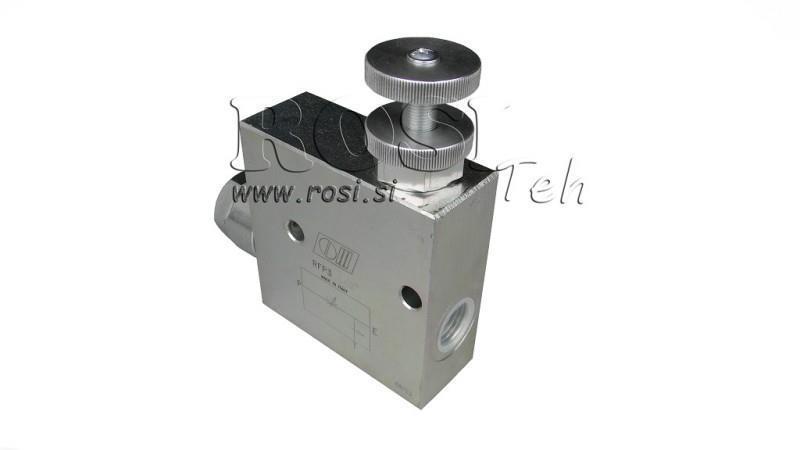

    PRIORITY VALVE RFP3 1/2 OPEN TANK

    Article code:
    11304
    OEM:
    9990000017690
    Tax rate
    22 %
    Price without VAT:
    73,77 €
    Price with VAT:
    90,00 €
    Ref:
    33
    ADD TO CART

    Usage:



    The valve acts as a priority valve. It allows flow 'P', constant according to the desired setting, independent of the input pressure. Excess flow and pressure are drained directly into the tank.



    Connection:

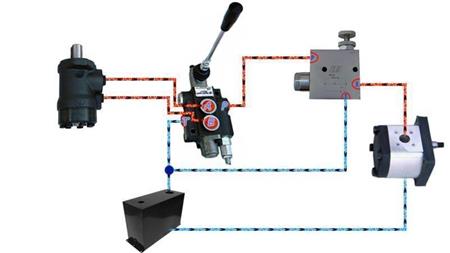

    Connect 'E' to the pressure side and 'P' to the actuator or to the hydraulic line where regulation is needed. Connect 'T' to the tank. To regulate the input pressure in 'P', screw/unscrew the regulator.



    Material:



    Housing: hard material, galvanized
    Seal: BUNA N standard

    Supplier:
    Italy
    Return or exchange:
    14 days
    Product weight:
    2.1 kg
    Warranty:
    6 months
    max. adjustable flow:
    60 l/min
    Max. flow:
    80 l/min
    max. pressure:
    350 bar
