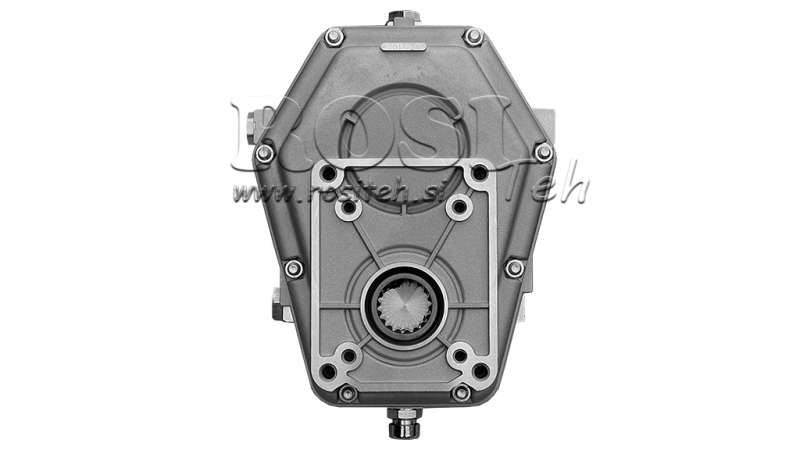

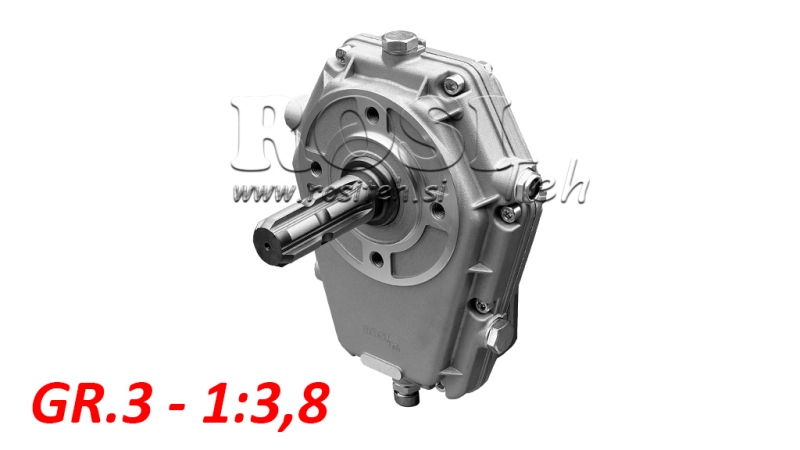

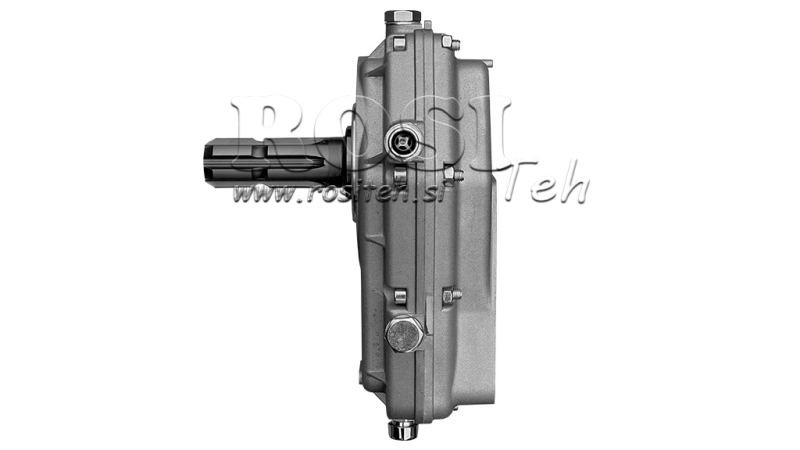

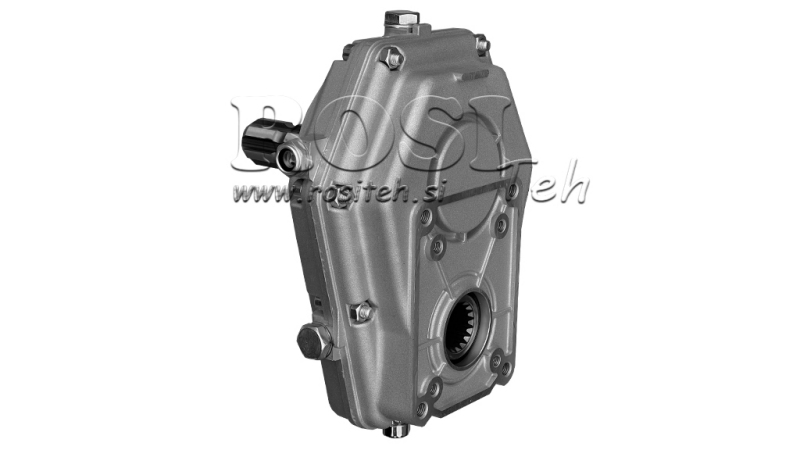

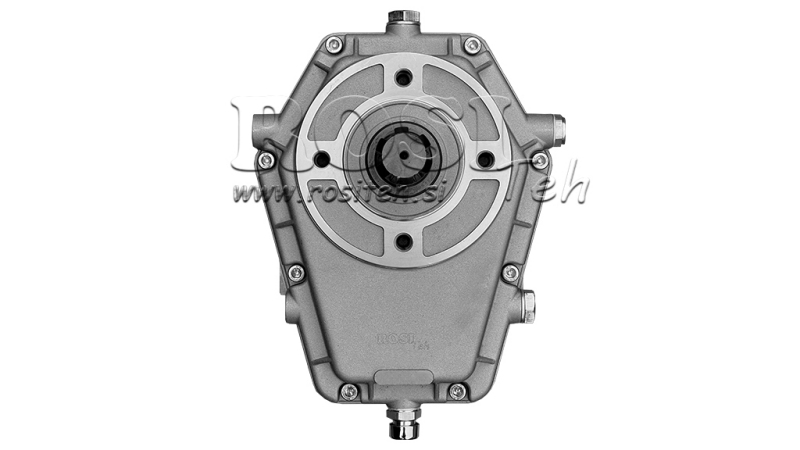

GEARBOX GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
MULTIPLIER GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
GEARBOX GR.3 -1:3.8 MALE
MULTIPLIER GR.3 -1:3.8 MALE

GEARBOX GR.3 -1:3.8 MALE

Article code:
10131
OEM:
9990000000661
Tax rate
22 %
Price without VAT:
118,85 €
Price with VAT:
145,00 €
Ref:
344
ADD TO CART

Usage



The gearbox is used to increase the revolutions of the gear pump and consequently increase the flow of the pump itself.

They are most commonly used for wood splitters, tractor loaders, and other tractor attachments.

Basically, there is a male version with a connection via a cardan and a female version with a pin for direct installation on the tractor's cardan.

Supplier:
Italy
Return or exchange:
14 days
Revolutions:
max. 3000 rpm
Input torque:
43.7 daNm
Output torque:
11.5 daNm
Product weight:
8.1 kg
Input RPM:
540 rpm
Output RPM:
2057 rpm
Transmission ratio:
1:3.8
Warranty:
6 months
operating temperature:
from -20°C to +180°C
For loads:
20 kW
